Mounting Kits for load cells

ARE YOU LOOKING FOR A PRODUCT?

Search by product subfamily
Search by product model
Show search filters
Found 40 products
T8 - for load cells AZLI - AZL - AZS - AM
for load cells AZLI - AZL - AZS - AM
Mounting kits designed for rollers, platforms, tanks, hoppers, etc..; provided with a self-centring joint foot, adjustable height, against lateral forces and anti-tilt to compensate for misalignment of the support plates. Adjustable height.
Max static load 300 kg.
TFCFSB - for load cells FCOL - FCK
for load cells FCOL - FCK
Mounting kit with a compression joint in AISI 304 stainless steel and rubber, to compensate for misalignment of the support plates of the structure. Adjustable height.
Max static load 300 kg.
TFCGP - for load cells FCOL - FCK
for load cells FCOL - FCK
Mounting kit designed for small tanks, hoppers, platforms, etc. AISI 304 stainless steel upper plate with a compression joint + rubber, to compensate for misalignment of the support plates of the structure. Adjustable height.
Max static load 300 kg.
TFCPV - TFCPV10 - for load cells FCOL - FCK
for load cells FCOL - FCK
Mounting kit provided with a foot against lateral forces and anti-tilt to compensate for misalignment of the support plates. Self-centring joint foot. Small adjustable height.
Max static load 300 kg.
TFAST - for load cells FCAX - FCAL
for load cells FCAX - FCAL
Mounting kit provided with alloy aluminum tension ball joint.
Max static load 500 kg.
TFFSB - for load cells FCAX - FCAL
for load cells FCAX - FCAL
Mounting kit provided with AISI 304 stainless steel joint + rubber, to compensate for misalignment of the support plates. Adjustable height.
Max static load 500 kg.
TFGP - TFGP2000 - for load cells FCAX - FCAL
for load cells FCAX - FCAL
Mounting kit provided with AISI304 stainless steel upper plate. AISI304 compression joint + rubber, to compensate for misalignment of the support plates. Adjustable height.
Max static load 500/1500 kg.
TFPVEN1090 - TFPV2000EN1090 - for load cells FCAX - FCAL
for load cells FCAX - FCAL
Mounting kit provided with self-centring joint foot to compensate for misalignment of the support plates. Anti-tilt device against lateral forces. Limited height adjustment.
Max static load 500/1500 kg.
TFPV - TFPVZ - TFPV2000 - for load cells FCAX - FCAL
for load cells FCAX - FCAL
Mounting kit provided with self-centring joint foot to compensate for misalignment of the support plates. Anti-tilt device against lateral forces. Limited height adjustment.
Max static load 500/1500 kg.
T12FCAGP - T12FTAGP  - for load cells FCAL - FCAX - FTK - FTKL - FTL - FTP/-P - FTZ
for load cells FCAL - FCAX - FTK - FTKL - FTL - FTP/-P - FTZ
Weight module designed for tanks, hoppers, platforms, etc..; provided with a compression joint in AISI 304 stainless steel and rubber to compensate for misalignment of the support plates of the structure. Lower plate and block in galvanized steel. AISI 304 stainless steel upper plate. Adjustable height.
Max static load 1500/2000 kg.
TF500 - TF2000 - TF2000Z - for load cells FTKL - FTP/-P - FTK - FTZ - FTL
for load cells FTKL - FTP/-P - FTK - FTZ - FTL
Mounting kits constructed of AISI 304 stainless steel or galvanized steel; designed for tanks, hoppers, platforms, etc..; provided with a compression joint in AISI 304 stainless steel and rubber, to compensate for misalignment of the support plates of the structure. Adjustable height.
Max static load 500/2000 kg.
TFPS2000 - for load cells FTKL - FTL - FTP/-P - FTK - FTZ
for load cells FTKL - FTL - FTP/-P - FTK - FTZ
Hot worked galvanized (TFPS2000) or in stainless steel (TFPS2000INOX) mounting kit designed for silos, mixing machines, tanks, hoppers subject to vibrations because of parts in motion. Provided with a ball joint, against lateral forces and anti-tilt to compensate for misalignment of the support plates. Adjustable height.
Max static load 2000 kg.
PVEN1090 -  für Wägezellen FTKL - FTP/-P - FTK - FTZ - FTL
für Wägezellen FTKL - FTP/-P - FTK - FTZ - FTL

Wägemodul zum Wiegen von Rollenbahnen, Plattformen, Trichtern, Tanks, usw.; Ausgestattet mit einer Bindung gegen Seitenverschiebung und Kippschutz-Bindung mittels selbstzentrierendem Gelenkfuß auf Kugel, die der Nicht-Parallelität der Struktur ausgleichen kann. Höhenverstellung.
Maximale statische Belastung 2000 kg.

PV - PVZ - for load cells FTKL - FTP/-P - FTK - FTZ - FTL
for load cells FTKL - FTP/-P - FTK - FTZ - FTL
Mounting kit designed for rollers, platforms, tanks, hoppers, etc..; provided with a self-centring joint foot, against lateral forces and anti-tilt to compensate for misalignment of the support plates of the structure. Adjustable height.
Max static load 2000 kg.
PV80EN1090 -  für Wägezellen FTP - FTZ
für Wägezellen FTP - FTZ

Wägemodule zum Wiegen von Rollenbahnen, Plattformen, Trichtern, Tanks, usw.; Ausgestattet mit einer Bindung gegen Seitenverschiebung und Kippschutz-Bindung mittels selbstzentrierendem Gelenkfuß, höhenverstellbar, auf Kugel auf Kugel aus Edelstahl, die der Nicht-Parallelität der Struktur ausgleichen kann.
Maximale statische Belastung 5000 kg.

PV80 - PV60Z - for load cells FTP - FTK - FTZ
for load cells FTP - FTK - FTZ
Mounting kit designed for rollers, platforms, tanks, hoppers, etc..; provided with a stainless steel self-centring joint foot, adjustable height, against lateral forces and anti-tilt to compensate for misalignment of the support plates.
Max static load 5000 kg.
PPV - PPVZ - PPV80 - PPV60Z - for single point, bending beam, shear beam and compression load cells
for single point, bending beam, shear beam and compression load cells
AISI 304 and galvanized steel upper plate for foot mounting.
PS - PS10T - for load cells FTP - FTK - FTZ
for load cells FTP - FTK - FTZ
Hot worked galvanized mounting kit designed for silos, mixing machines, tanks, hoppers subject to vibrations because of parts in motion. Provided with a ball joint, against lateral forces and anti-tilt to compensate for misalignment of the support plates. Adjustable height.
Max static load 5000/10000 kg.
PVCLSEN1090 -  für Wägezellen CLS 1000 - 2000
für Wägezellen CLS 1000 - 2000
Wägemodule aus Edelstahl zum Wiegen von Rollenbahnen, Plattformen, Trichtern, Tanks usw. ; Ausgestattet mit einer Bindung gegen Seitenverschiebung und Kippschutz-Bindung mittels selbstzentrierendem Gelenkfuß, höhenverstellung, auf Kugel, die der Nicht-Parallelität der Struktur ausgleichen kann.
PVCLS - for load cells CLS 1000 - 2000
for load cells CLS 1000 - 2000
Stainless steel mounting kit designed for rollers, platforms, tanks, hoppers, etc..; provided with a self-centring joint foot, adjustable height, against lateral forces and anti-tilt to compensate for misalignment of the support plates.
PV80CLSEN1090 -  für Wägezellen CLS 5000
für Wägezellen CLS 5000
Wägemodule aus Edelstahl zum Wiegen von Rollenbahnen, Plattformen, Trichtern, Tanks, usw.; Ausgestattet mit einer Bindung gegen Seitenverschiebung und Kippschutz-Bindung mittels selbstzentrierendem Gelenkfuß, höhenverstellung, auf Kugel aus Edelstahl, die der Nicht-Parallelität der Struktur ausgleichen kann.
PV80CLS - for load cells CLS 5000
for load cells CLS 5000
Stainless steel mounting kit designed for rollers, platforms, tanks, hoppers, etc..; provided with a stainless steel self-centring joint foot, adjustable height, against lateral forces and anti-tilt to compensate for misalignment of the support plates.
PSCLS - PSCLS2000 - for load cells CLS
for load cells CLS
Hot worked galvanized mounting kit designed for silos, mixing machines, tanks, hoppers subject to vibrations because of parts in motion. Provided with a ball joint, against lateral forces and anti-tilt to compensate for misalignment of the support plates of the structure. Adjustable height.
Max static load 2000/5000 kg.
P10000 - for load cells CBL - CBX 15000
for load cells CBL - CBX 15000
Bases and plates are constructed of AISI 304 stainless steel.
V10000EN1090 - V10275EN1090 -  für Wägezellen CBL - CBX
für Wägezellen CBL - CBX
Wägemodule aus Edelstahl AISI 304 zum Wiegen von Silos, Mischern, Tanks, Trichtern, usw. die Vibrationen durch bewegliche Teile ausgesetzt sind.

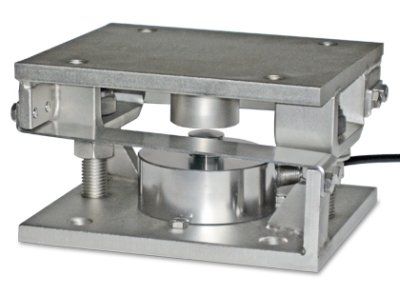

V10000 - V10275 - for load cells CBL - CBX
for load cells CBL - CBX
AISI-304 stainless steel mounting kits designed for silos, tanks, mixing machines, hoppers subject to vibrations because of parts in motion.
Z10000 -  für Wägezellen CBL - CBX
für Wägezellen CBL - CBX
Wägemodul aus verzinktem Baustahl S355JR zum Wiegen von Silos, Mischern, Tanks, Trichtern, usw., die Vibrationen von beweglichen Organen ausgesetzt sind.
V15000EN1090 - V30000EN1090 - V100000EN1090 - für Wägezellen CBL - CBX
für Wägezellen CBL - CBX
Wägemodul aus Edelstahl AISI 304 zum Wiegen von Silos, Mischern, Tanks, Trichtern, usw. die Vibrationen durch bewegliche Teile ausgesetzt sind.
V15000 - V30000 - V100000 - for load cells CBL - CBX
for load cells CBL - CBX
AISI-304 stainless steel mounting kits designed for silos, mixing machines, tanks, hoppers subject to vibrations because of parts in motion.
Z15000 - Z30000 - Z100000 - für Wägezellen CBL - CBX
für Wägezellen CBL - CBX
Wägemodule aus verzinktem Baustahl S355JR zum Wiegen von Silos, Mischern, Tanks, Trichtern, usw., die Vibrationen von beweglichen Organen ausgesetzt sind.
VDTX - for cells DTX
for cells DTX
Mounting kit constructed of nickel-plated steel alloy; designed for on-board weighing, overhead cranes, silos, mixing machines, tanks, hoppers subject to vibrations Because of parts in motion or wind effect. Suitable for high-capacities weighing systems approved for legal use with third parties.
Max static load 60 klb.
VCOKDTL - for load cells COL - COK - DTL
for load cells COL - COK - DTL
Galvanized steel mounting kit designed for weighing silos, tanks, mixing machines and hoppers subject to vibrations caused by moving parts or wind effect.
Max static load 50000 kg.
TENDITORE300 - PTEND - STAY RODS TO CONSTRUCT MOUNTING ACCESSORIES
STAY RODS TO CONSTRUCT MOUNTING ACCESSORIES
Galvanized stay rod with ball-and-socket joints (bolts and pins not included) suitable for static applications, to be positioned horizontally.

Galvanized brackets for stay rod.
BASESUP - BASEINF - BASES TO CONSTRUCT ACCESSORIES FOR CBL - CBX
BASES TO CONSTRUCT ACCESSORIES FOR CBL - CBX
BASESUP: Turned upper base in AISI 304 stainless steel

BASEINF: Turned lower base in AISI 304 stainless steel
BASESUPFIL - BINF - BASES TO CONSTRUCT ACCESSORIES FOR CBL - CBX
BASES TO CONSTRUCT ACCESSORIES FOR CBL - CBX
BASESUPFIL: Threaded upper base in stainless steel

BINF100-126-165: Turned lower bases in stainless steel

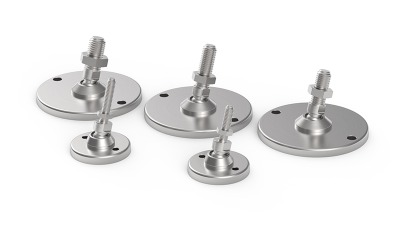

PIEDINOSB2 - PIEDINOPXC - for load cells FCAL/X - FCL - FCOL - FTK/L - FTL - FTP/-P - FTZ
for load cells FCAL/X - FCL - FCOL - FTK/L - FTL - FTP/-P - FTZ
Self-centring adjustable feet
EM - DADO - for tension (compression) load cells
for tension (compression) load cells
Ball-and-socket joints with nut
SNODOGE - for load cells CLS - FTK - FTKL - FTL - FTP/-P - FTZ
for load cells CLS - FTK - FTKL - FTL - FTP/-P - FTZ
Steel spherical plain thrust bearings to compensate for misalignment.
ACCSFER - for cells FTKL - FTL - FTP/-P - FTK - FTZ - CLS - FTP - CLS
for cells FTKL - FTL - FTP/-P - FTK - FTZ - CLS - FTP - CLS
Simple stainless steel accessory with ball, to compensate for misalignment of the support plates of the structure.
ANTIV - for cells FTKL - FCAL/X - FTP/-P - FTK/Z/L - CLS - FCL - FCOL - FCK
for cells FTKL - FCAL/X - FTP/-P - FTK/Z/L - CLS - FCL - FCOL - FCK
Stainless steel & rubber joints to compensate for misalignment of the support plates of the structure.
