Click on the desired product to access the relevant sheet in PDF format.
Manuals and product sheets with price list are only available to registered users.

  W100

EC-TYPE APPROVAL (NAWI - MID/AWI)EAC CERTIFICATIONOIML APPROVAL“UL RECOGNIZED COMPONENT” CERTIFICATIONNMI CERTIFICATION for Australia

WEIGHT INDICATOR

Clicca qui per i dettagli
  • Panel mounting
  • Six-digit red LED display, 14 mm height
  • RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
  • 3 logic inputs, 5 relay outputs
  • OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
  • OIML R61 approved - WELMEC Guide 8.8:2011 (M.I.D.)


  W200

EC-TYPE APPROVAL (NAWI - MID/AWI)EAC CERTIFICATIONOIML APPROVAL“UL RECOGNIZED COMPONENT” CERTIFICATIONNMI CERTIFICATION for Australia

WEIGHT INDICATOR (for weighing and batching)

Clicca qui per i dettagli
  • Possible installations: panel, wall
  • Multiprogram: single loading/unloading and multi-product batchings, max 99 formulas
  • Six-digit red LED display, 14 mm height
  • RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
  • 3 logic inputs, 5 relay outputs
  • OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
  • OIML R61 approved - WELMEC Guide 8.8:2011 (M.I.D.)
  • Optional fieldbuses: Profibus DP, DeviceNet, CANopen, Profinet IO, Modbus/TCP, Ethernet/IP. Ethernet TCP/IP port for remote management via internet from PC, smartphone or tablet, etc.

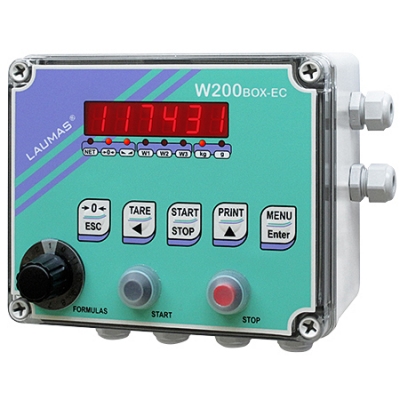

  W200BOX

EC-TYPE APPROVAL (NAWI - MID/AWI)ATEX CERTIFICATIONIECEx CERTIFICATIONEAC CERTIFICATIONOIML APPROVAL“UL RECOGNIZED COMPONENT” CERTIFICATIONNMI CERTIFICATION for Australia

WEIGHT INDICATOR INTO IP67-64 CASE (for weighing and batching)

Clicca qui per i dettagli
  • Wall mounting
  • Multiprogram: single loading/unloading and multi-product batchings, max 99 formulas
  • Six-digit red LED display, 14 mm height
  • RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
  • 3 logic inputs, 5 relay outputs
  • OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
  • OIML R61 approved - WELMEC Guide 8.8:2011 (M.I.D.)
  • Optional fieldbuses: Profinet IO, Modbus/TCP, Ethernet/IP. Ethernet TCP/IP port for remote management via internet from PC, smartphone or tablet, etc.


  WDOS

EC-TYPE APPROVAL (NAWI - MID/AWI)EAC CERTIFICATIONOIML APPROVAL“UL RECOGNIZED COMPONENT” CERTIFICATIONNMI CERTIFICATION for Australia

WEIGHT INDICATOR (for weighing and batching)

Clicca qui per i dettagli
  • Panel mounting
  • Multiprogram: single loading/unloading and multi-product batchings, max 99 formulas
  • Backlit graphic LCD display, 60x32 mm, 128x64 pixels
  • Six-digit red LED display, 10 mm height
  • RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
  • 3 logic inputs, 5 relay outputs
  • OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
  • OIML R61 approved - WELMEC Guide 8.8:2011 (M.I.D.)
  • Optional fieldbuses: Profibus DP, DeviceNet, CANopen, Profinet IO, Modbus/TCP, Ethernet/IP. Ethernet TCP/IP port for remote management via internet from PC, smartphone or tablet, etc.


  WDESK-L

EC-TYPE APPROVAL (NAWI - MID/AWI)ATEX CERTIFICATIONEAC CERTIFICATIONOIML APPROVAL“UL RECOGNIZED COMPONENT” CERTIFICATIONNMI CERTIFICATION for Australia

IP67 WEIGHT INDICATOR (for weighing and batching)

Clicca qui per i dettagli
  • Possible installations: wall, panel, column, desk
  • Multiprogram: single loading/unloading and multi-product batchings, max 99 formulas
  • Six-digit backlit LCD display, 20 mm height
  • RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
  • 3 logic inputs, 5 relay outputs
  • OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
  • OIML R61 approved - WELMEC Guide 8.8:2011 (M.I.D.)
  • Optional fieldbuses: Profibus DP, DeviceNet, CANopen, Profinet IO, Modbus/TCP, Ethernet/IP. Ethernet TCP/IP port for remote management via internet from PC, smartphone or tablet, etc.


  WDESK-R

EC-TYPE APPROVAL (NAWI - MID/AWI)ATEX CERTIFICATIONEAC CERTIFICATIONOIML APPROVAL“UL RECOGNIZED COMPONENT” CERTIFICATIONNMI CERTIFICATION for Australia

IP67 WEIGHT INDICATOR (for weighing and batching)

Clicca qui per i dettagli
  • Possible installations: wall, panel, column, desk
  • Multiprogram: single loading/unloading and multi-product batchings, max 99 formulas
  • Six-digit red LED display, 20 mm height
  • RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
  • 3 logic inputs, 5 relay outputs
  • OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
  • OIML R61 approved - WELMEC Guide 8.8:2011 (M.I.D.)
  • Optional fieldbuses: Profibus DP, DeviceNet, CANopen, Profinet IO, Modbus/TCP, Ethernet/IP. Ethernet TCP/IP port for remote management via internet from PC, smartphone or tablet, etc.


  WDESK-G

EC-TYPE APPROVAL (NAWI - MID/AWI)ATEX CERTIFICATIONEAC CERTIFICATIONOIML APPROVAL“UL RECOGNIZED COMPONENT” CERTIFICATIONNMI CERTIFICATION for Australia

IP67 WEIGHT INDICATOR (for weighing and batching)

Clicca qui per i dettagli
  • Possible installations: wall, panel, column, desk
  • Multiprogram: single loading/unloading and multi-product batchings, max 99 formulas
  • Backlit LCD graphic display, 133x39 mm, 240x64 pixel
  • RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
  • 3 logic inputs, 5 relay outputs
  • OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
  • OIML R61 approved - WELMEC Guide 8.8:2011 (M.I.D.)
  • Optional fieldbuses: Profibus DP, DeviceNet, CANopen, Profinet IO, Modbus/TCP, Ethernet/IP. Ethernet TCP/IP port for remote management via internet from PC, smartphone or tablet, etc.


  WDESK-BL

EC-TYPE APPROVAL (NAWI - MID/AWI)EAC CERTIFICATIONOIML APPROVAL“UL RECOGNIZED COMPONENT” CERTIFICATIONNMI CERTIFICATION for Australia

WEIGHBRIDGE INDICATOR

Clicca qui per i dettagli
  • Possible installations: desk, wall
  • Vehicle weighing: Double weighing (entry and exit), single weighing (entry or exit), double/single weighing with trailer, mutliple weighing (weighing of multi-compartment trucks). Trucks database with password, max 999 preset tare that can be stored and recalled. Open input weighs archive (max 254). Totals management and traffic light function.
  • Six-digit backlit LCD display, 20 mm height
  • RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
  • 3 logic inputs, 5 relay outputs
  • OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
  • Supported printers: Epson TM-U295, Epson LX300, Custom Kube II, Laumas STAVT II. Other models on request


  WDESK-BR

EC-TYPE APPROVAL (NAWI - MID/AWI)EAC CERTIFICATIONOIML APPROVAL“UL RECOGNIZED COMPONENT” CERTIFICATIONNMI CERTIFICATION for Australia

WEIGHBRIDGE INDICATOR

Clicca qui per i dettagli
  • Possible installations: desk, wall
  • Vehicle weighing: Double weighing (entry and exit), single weighing (entry or exit), double/single weighing with trailer, mutliple weighing (weighing of multi-compartment trucks). Trucks database with password, max 999 preset tare that can be stored and recalled. Open input weighs archive (max 254). Totals management and traffic light function.
  • Six-digit red LED display, 20 mm height
  • RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
  • 3 logic inputs, 5 relay outputs
  • OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
  • Supported printers: Epson TM-U295, Epson LX300, Custom Kube II, Laumas STAVT II. Other models on request


  WINOX-L

EC-TYPE APPROVAL (NAWI - MID/AWI)ATEX CERTIFICATIONIECEx CERTIFICATIONEAC CERTIFICATIONOIML APPROVAL“UL RECOGNIZED COMPONENT” CERTIFICATIONNMI CERTIFICATION for Australia

STAINLESS STEEL IP68 WEIGHT INDICATOR (for weighing and batching)

Clicca qui per i dettagli
  • Possible installations: wall, panel, column, desk
  • Multiprogram: single loading/unloading and multi-product batchings, max 99 formulas
  • Six-digit backlit LCD display, 20 mm height
  • RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
  • 3 logic inputs, 5 relay outputs
  • OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
  • OIML R61 approved - WELMEC Guide 8.8:2011 (M.I.D.)
  • Optional fieldbuses: Profibus DP, DeviceNet, CANopen, Profinet IO, Modbus/TCP, Ethernet/IP. Ethernet TCP/IP port for remote management via internet from PC, smartphone or tablet, etc.


  WINOX-R

EC-TYPE APPROVAL (NAWI - MID/AWI)ATEX CERTIFICATIONIECEx CERTIFICATIONEAC CERTIFICATIONOIML APPROVAL“UL RECOGNIZED COMPONENT” CERTIFICATIONNMI CERTIFICATION for Australia

STAINLESS STEEL IP68 WEIGHT INDICATOR (for weighing and batching)

Clicca qui per i dettagli
  • Possible installations: wall, panel, column, desk
  • Multiprogram: single loading/unloading and multi-product batchings, max 99 formulas
  • Six-digit red LED display, 20 mm height
  • RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
  • 3 logic inputs, 5 relay outputs
  • OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
  • OIML R61 approved - WELMEC Guide 8.8:2011 (M.I.D.)
  • Optional fieldbuses: Profibus DP, DeviceNet, CANopen, Profinet IO, Modbus/TCP, Ethernet/IP. Ethernet TCP/IP port for remote management via internet from PC, smartphone or tablet, etc.


  WINOX-G

EC-TYPE APPROVAL (NAWI - MID/AWI)ATEX CERTIFICATIONIECEx CERTIFICATIONEAC CERTIFICATIONOIML APPROVAL“UL RECOGNIZED COMPONENT” CERTIFICATIONNMI CERTIFICATION for Australia

STAINLESS STEEL IP68 WEIGHT INDICATOR (for weighing and batching)

Clicca qui per i dettagli
  • Possible installations: wall, panel, column, desk
  • Multiprogram: single loading/unloading and multi-product batchings, max 99 formulas
  • Backlit LCD graphic display, 133x39 mm, 240x64 pixel
  • RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
  • 3 logic inputs, 5 relay outputs
  • OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
  • OIML R61 approved - WELMEC Guide 8.8:2011 (M.I.D.)
  • Optional fieldbuses: Profibus DP, DeviceNet, CANopen, Profinet IO, Modbus/TCP, Ethernet/IP. Ethernet TCP/IP port for remote management via internet from PC, smartphone or tablet, etc.


  WINOX-2G

EC-TYPE APPROVAL (NAWI - MID/AWI)ATEX CERTIFICATIONIECEx CERTIFICATIONEAC CERTIFICATIONOIML APPROVAL“UL RECOGNIZED COMPONENT” CERTIFICATIONNMI CERTIFICATION for Australia

STAINLESS STEEL IP68 WEIGHT INDICATOR (for weighing and batching)

Clicca qui per i dettagli
  • Possible installations: wall, panel, column, desk
  • Multiprogram: single loading/unloading and multi-product batchings, max 99 formulas
  • Backlit LCD graphic display, 128x75 mm, 240x128 pixel
  • RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
  • 3 logic inputs, 5 relay outputs
  • OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
  • OIML R61 approved - WELMEC Guide 8.8:2011 (M.I.D.)
  • Optional fieldbuses: Profibus DP, DeviceNet, CANopen, Profinet IO, Modbus/TCP, Ethernet/IP. Ethernet TCP/IP port for remote management via internet from PC, smartphone or tablet, etc.


  WINOX-BL

EC-TYPE APPROVAL (NAWI - MID/AWI)EAC CERTIFICATIONOIML APPROVAL“UL RECOGNIZED COMPONENT” CERTIFICATIONNMI CERTIFICATION for Australia

STAINLESS STEEL WEIGHT INDICATOR FOR WEIGHBRIDGE

Clicca qui per i dettagli
  • Ideal for desk mounting
  • Vehicle weighing: Double weighing (entry and exit), single weighing (entry or exit), double/single weighing with trailer, mutliple weighing (weighing of multi-compartment trucks). Trucks database with password, max 999 preset tare that can be stored and recalled. Open input weighs archive (max 254). Totals management and traffic light function.
  • Six-digit backlit LCD display, 20 mm height
  • RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
  • 3 logic inputs, 5 relay outputs
  • OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
  • Supported printers: Epson TM-U295, Epson LX300, Custom Kube II, Laumas STAVT II. Other models on request


  WINOX-BR

EC-TYPE APPROVAL (NAWI - MID/AWI)EAC CERTIFICATIONOIML APPROVAL“UL RECOGNIZED COMPONENT” CERTIFICATIONNMI CERTIFICATION for Australia

STAINLESS STEEL WEIGHT INDICATOR FOR WEIGHBRIDGE

Clicca qui per i dettagli
  • Ideal for desk mounting
  • Vehicle weighing: Double weighing (entry and exit), single weighing (entry or exit), double/single weighing with trailer, mutliple weighing (weighing of multi-compartment trucks). Trucks database with password, max 999 preset tare that can be stored and recalled. Open input weighs archive (max 254). Totals management and traffic light function.
  • Six-digit red LED display, 20 mm height
  • RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
  • 3 logic inputs, 5 relay outputs
  • OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
  • Supported printers: Epson TM-U295, Epson LX300, Custom Kube II, Laumas STAVT II. Other models on request


  WINOX-BGE


EC-TYPE APPROVAL (NAWI - MID/AWI)EAC CERTIFICATIONOIML APPROVAL“UL RECOGNIZED COMPONENT” CERTIFICATIONNMI CERTIFICATION for Australia

STAINLESS STEEL WEIGHT INDICATOR FOR WEIGHBRIDGE

Clicca qui per i dettagli
  • Ideal for desk mounting
  • Vehicle weighing: Double weighing (entry and exit), single weighing (entry or exit), double/single weighing with trailer, mutliple weighing (weighing of multi-compartment trucks). Database with 500 vehicles (license plates, predetermined tare), products, customers and operators. Barcode reader management with printing and call-out of the open weighing ID. Up to 10000 weighings that can be saved in alibi memory. Traffic light management via relay outputs.
  • Backlit graphic LCD display, 133x39 mm, 240x64 pixels
  • RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
  • 3 logic inputs, 5 relay outputs
  • 2 USB ports, 1 Ethernet TCP/IP port
  • OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
  • Supported printers: Epson TM-U295, Epson LX300, Custom Kube II, Laumas STAVT II. Other models on request.


  WEBLAU


WEB SERVER MASTER FOR W AND TLB SERIES (max 8)

Clicca qui per i dettagli
  • Ideal for supervision, management and remote control of the W series weight indicators and TLB series weight transmitters (max 8 instruments)
  • RS485 port (Modbus RTU)
  • Ethernet TCP/IP port for remote management via internet from PC, smartphone or tablet, etc.
  • Back panel mounting on Omega/DIN rail

The WEBLAU device is a useful support for all installers/dealers of Laumas weighing instruments as it makes easier the remote maintenance, allowing to control wherever, the status of the instruments connected to RS485 including the possible anomalies.


  WTAB-L

EC-TYPE APPROVAL (NAWI - MID/AWI)EAC CERTIFICATIONOIML APPROVAL“UL RECOGNIZED COMPONENT” CERTIFICATION

WEIGHT INDICATOR (for weighing and batching)

Clicca qui per i dettagli
  • Ideal for desk mounting, ergonomic design
  • Six-digit backlit LCD display, 20 mm height
  • RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
  • 3 logic inputs, 5 relay outputs
  • OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
  • OIML R61 approved - WELMEC Guide 8.8:2011 (M.I.D.)
  • Optional fieldbuses: Profibus DP, DeviceNet, CANopen, Profinet IO, Modbus/TCP, Ethernet/IP. Ethernet TCP/IP port for remote management via internet from PC, smartphone or tablet, etc.


  WTAB-R

EC-TYPE APPROVAL (NAWI - MID/AWI)EAC CERTIFICATIONOIML APPROVAL“UL RECOGNIZED COMPONENT” CERTIFICATIONNMI CERTIFICATION for Australia

WEIGHT INDICATOR (for weighing and batching)

Clicca qui per i dettagli
  • Ergonomic design, ideal for desk mounting
  • Six-digit red LED display, 20 mm height
  • RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
  • 3 logic inputs, 5 relay outputs
  • OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
  • OIML R61 approved - WELMEC Guide 8.8:2011 (M.I.D.)
  • Optional fieldbuses: Profibus DP, DeviceNet, CANopen, Profinet IO, Modbus/TCP, Ethernet/IP. Ethernet TCP/IP port for remote management via internet from PC, smartphone or tablet, etc.


  WTAB-G

EC-TYPE APPROVAL (NAWI - MID/AWI)EAC CERTIFICATIONOIML APPROVAL“UL RECOGNIZED COMPONENT” CERTIFICATIONNMI CERTIFICATION for Australia

WEIGHT INDICATOR (for weighing and batching)

Clicca qui per i dettagli
  • Ideal for desk mounting, ergonomic design
  • Backlit LCD graphic display, 133x39 mm, 240x64 pixel
  • RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
  • 3 logic inputs, 5 relay outputs
  • OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
  • OIML R61 approved - WELMEC Guide 8.8:2011 (M.I.D.)
  • Optional fieldbuses: Profibus DP, DeviceNet, CANopen, Profinet IO, Modbus/TCP, Ethernet/IP. Ethernet TCP/IP port for remote management via internet from PC, smartphone or tablet, etc.


  WTAB-2G

EC-TYPE APPROVAL (NAWI - MID/AWI)EAC CERTIFICATIONOIML APPROVAL“UL RECOGNIZED COMPONENT” CERTIFICATIONNMI CERTIFICATION for Australia

WEIGHT INDICATOR (for weighing and batching)

Clicca qui per i dettagli
  • Ideal for desk mounting, ergonomic design
  • Backlit LCD graphic display, 128x75 mm, 240x128 pixel
  • RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
  • 3 logic inputs, 5 relay outputs
  • OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
  • OIML R61 approved - WELMEC Guide 8.8:2011 (M.I.D.)
  • Optional fieldbuses: Profibus DP, DeviceNet, CANopen, Profinet IO, Modbus/TCP, Ethernet/IP. Ethernet TCP/IP port for remote management via internet from PC, smartphone or tablet, etc.


  WTAB-BL

EC-TYPE APPROVAL (NAWI - MID/AWI)EAC CERTIFICATIONOIML APPROVAL“UL RECOGNIZED COMPONENT” CERTIFICATIONNMI CERTIFICATION for Australia

WEIGHBRIDGE INDICATOR

Clicca qui per i dettagli
  • Ideal for desk mounting, ergonomic design
  • Vehicle weighing: Double weighing (entry and exit), single weighing (entry or exit), double/single weighing with trailer, mutliple weighing (weighing of multi-compartment trucks). Trucks database with password, max 999 preset tare that can be stored and recalled. Open input weighs archive (max 254). Totals management and traffic light function.
  • Six-digit backlit LCD display, 20 mm height
  • RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
  • 3 logic inputs, 5 relay outputs
  • OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
  • Integrated thermal printer (optional). Supported printers: Epson TM-U295, Epson LX300, Custom Kube II, Laumas STAVT II. Other models on request


  WTAB-BR

EC-TYPE APPROVAL (NAWI - MID/AWI)EAC CERTIFICATIONOIML APPROVAL“UL RECOGNIZED COMPONENT” CERTIFICATIONNMI CERTIFICATION for Australia

WEIGHBRIDGE INDICATOR

Clicca qui per i dettagli
  • Ideal for desk mounting, ergonomic design
  • Vehicle weighing: Double weighing (entry and exit), single weighing (entry or exit), double/single weighing with trailer, mutliple weighing (weighing of multi-compartment trucks). Trucks database with password, max 999 preset tare that can be stored and recalled. Open input weighs archive (max 254). Totals management and traffic light function.
  • Six-digit red LED display, 20 mm height
  • RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
  • 3 logic inputs, 5 relay outputs
  • OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
  • Integrated thermal printer (optional). Supported printers: Epson TM-U295, Epson LX300, Custom Kube II, Laumas STAVT. Other models on request


  WTAB-BGE


EC-TYPE APPROVAL (NAWI - MID/AWI)EAC CERTIFICATIONOIML APPROVAL“UL RECOGNIZED COMPONENT” CERTIFICATIONNMI CERTIFICATION for Australia

WEIGHBRIDGE INDICATOR

Clicca qui per i dettagli
  • Ideal for desk mounting, ergonomic design
  • Vehicle weighing: Double weighing (entry and exit), single weighing (entry or exit), double/single weighing with trailer, mutliple weighing (weighing of multi-compartment trucks). Database with 500 vehicles (license plates, predetermined tare), products, customers and operators. Barcode reader management with printing and call-out of the open weighing ID. Up to 10000 weighings that can be saved in alibi memory. Traffic light management via relay outputs.
  • Backlit graphic LCD display, 133x39 mm, 240x64 pixels
  • RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
  • 3 logic inputs, 5 relay outputs
  • 2 USB ports, 1 Ethernet TCP/IP port
  • OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
  • Integrated thermal printer (optional). Supported printers: Epson TM-U295, Epson LX300, Custom Kube II, Laumas STAVT II. Other models on request.


  WETOIML

EC-TYPE APPROVAL (NAWI - MID/AWI)OIML APPROVAL

WEIGHT INDICATOR

Clicca qui per i dettagli
  • Possible installations: wall (with optional bracket), column, desk
  • Six-digit red LED display, 20 mm height
  • RS232 port
  • OIML R76:2006 approved, class III, 3000 divis.


  WEIOIML

EC-TYPE APPROVAL (NAWI - MID/AWI)EAC CERTIFICATIONOIML APPROVAL

STAINLESS STEEL IP67 WEIGHT INDICATOR

Clicca qui per i dettagli
  • Possible installations: wall, column, desk
  • Six-digit red LED display, 20 mm height
  • RS232 port
  • OIML R76:2006 approved, class III, 3000 divis.


  WML


EC-TYPE APPROVAL (NAWI - MID/AWI)OIML APPROVAL

WEIGHT INDICATOR

Clicca qui per i dettagli
  • Possible installations: column, desk
  • Six-digit backlit LCD display, 26 mm height
  • RS232 port
  • OIML R76:2006 approved, class III, 3500 divis.


  JOLLY2/4

EAC CERTIFICATION

WEIGHT INDICATOR (for weighing and batching)

Clicca qui per i dettagli
  • Possible installations: panel, wall
  • Multiprogram: single loading/unloading and multi-product batchings, one formula
  • Four-digit red LED display, 20 mm height
  • 2 logic inputs, 2/4 relay outputs


  PWI

EAC CERTIFICATION

WEIGHT INDICATOR (for weighing and batching)

Clicca qui per i dettagli
  • Possible installations: panel, wall
  • Single loading/unloading batchings, one formula
  • Four-digit red LED display, 20 mm height
  • 2 logic inputs, 2 relay outputs


  PWS

EAC CERTIFICATION

WEIGHT INDICATOR (for weighing and batching)

Clicca qui per i dettagli
  • Possible installations: panel, wall
  • Single loading/unloading and multi-product batchings, max 12 formulas
  • Four-digit red LED display, 20 mm height
  • 2 logic inputs, 4 relay outputs


  WT60

EAC CERTIFICATION

WEIGHT INDICATOR (for weighing and batching)

Clicca qui per i dettagli
  • Panel mounting
  • Single loading/unloading and multi-product batchings, max 12 formulas
  • Five-digit red LED display, 20 mm height
  • RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol / Profibus DP by converter)
  • 3 logic inputs, 4 relay outputs


  WL60

EAC CERTIFICATION

WEIGHT INDICATOR (for weighing and batching)

Clicca qui per i dettagli
  • Panel mounting
  • Single loading/unloading and multi-product batchings, max 50 formulas
  • Eight-digit red LED display, 14 mm height
  • RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol / Profibus DP by converter)
  • 6 logic inputs, 6 relay outputs


  WR

EAC CERTIFICATION

WEIGHT INDICATOR (for weighing and batching)

Clicca qui per i dettagli
  • Panel mounting
  • Multi-product batchings, max 50 formulas, 4 litre-counter in succession
  • Six-digit red LED display, 14 mm height
  • Backlit LCD display, two lines x 16-digit (5 mm h)
  • RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol / Profibus DP by converter)
  • 8 logic inputs, 8 relay outputs


  ADPE W200

ATEX CERTIFICATIONNMI CERTIFICATION for Australia

W200 SERIES WEIGHT INDICATOR INTO EXPLOSION PROOF BOX

Clicca qui per i dettagli
The system is composed of:

  • Weight indicator series W200
  • Passive fail-safe Zener barriers, ATEX II (1) GD approved
  • Explosion proof box, ATEX II 2(1) GD approved, provided with heat-resistant transparent tempered glass window and 5 external buttons which performs the same functions as W200 keyboard


  ADPE WL/W60000


ATEX CERTIFICATION

EXPLOSION PROOF BOXES FOR INDICATORS SERIES WL60, W60

Clicca qui per i dettagli
Explosion proof boxes, ATEX II 2 GD approved, provided with heat-resistant transparent tempered glass window and external buttons which performs the same functions as indicator keyboard.


  LW30000R


LOSS-IN-WEIGHT WEIGHING SYSTEMS

Clicca qui per i dettagli
  • Panel mounting
  • Backlit LCD display, two lines x 16-digit (5 mm height)
  • RS232 and RS485 ports (Ethernet TCP / Profibus DP by converter)
  • 8 logic inputs, 6 relay outputs


  WN30000R


CONTINUOUS BELT WEIGHING SYSTEMS

Clicca qui per i dettagli
  • Panel mounting
  • Backlit LCD display, two lines x 16-digit (5 mm h)
  • RS232 and RS485 ports (Ethernet TCP / Profibus DP by converter)
  • 8 logic inputs, 6 relay outputs





LOGIN CUSTOMER AREA

Enter the reserved area:




Forgotten your password?



Browse online catalogs
Download - Search a manual?
Sales Network Technical support Information about shipments

Top
