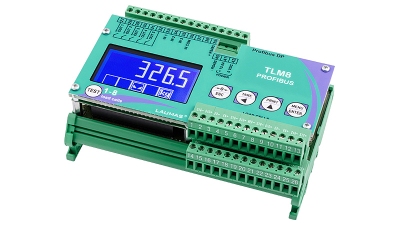

TLM8

DIGITAL-ANALOG WEIGHT TRANSMITTER ( RS485 ) 8 CHANNELS FOR LOAD CELLS

MODULE D AND EU TYPE EXAMINATION CERTIFICATE FOR Non-Automatic Weighing Instruments (NAWI)EAC CERTIFICATIONOIML APPROVAL“UL RECOGNIZED COMPONENT” CERTIFICATIONEU TYPE EXAMINATION CERTIFICATE FOR UK Non-Automatic Weighing Instruments (NAWI)European Conformity Mark (CE)UKCA CERTIFICATION (UK Conformity Assessed) for the United Kingdom
Electronic instrumentation
Weight transmitters

TLM8

ASK FOR A QUOTE ASK FOR INFORMATION ADD TO YOUR FAVOURITE PRODUCTS

GENERAL FEATURES

Weight transmitter with backlit graphic LCD display, 60x32 mm, 128x64 pixels. Four-key keypad for the system calibration. TEST key for direct access to the diagnostic functions. Dimensions: 148 x 92 x 60 mm.
The TLM8 offers the benefits and performance of an advanced digital weighing system even using analog load cells. 8 independent reading channels for load cells. Digital equalization. Automatic diagnostics.

  • 16-bit Analog output: 0/4-20 mA; 0-5/10 V
  • RS485 port (Modbus RTU/Laumas ASCII protocol)
  • 3 logic inputs, 5 relay outputs
  • OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
  • Mounting on Omega/DIN rail for back panel or junction box
  • Hygienic version RPSCQC authorized by 3-A SSI
  • 8 channels A/D converter - 24bit (16000000 points) 4.8 kHz
  • Display range 999999

DOWNLOAD

Check which documents are available in other languages.
Manuals and data sheets
(712 KB)
TLM8 manual TLM8 manual
TLM8 CE-M approved legal for trade - installer manual TLM8 CE-M approved legal for trade - installer manual
TLM8 CE-M approved legal for trade - user manual TLM8 CE-M approved legal for trade - user manual
TLM8 Protocols - manual TLM8 Protocols - manual
TLM8 Protocols CE-M approved - manual TLM8 Protocols CE-M approved - manual
Price Lists
Data sheet with prices Data sheet with prices
Certificates
EU Type Examination Certificate (NAWI) EU Type Examination Certificate (NAWI)
UL/CSA Certificate of Conformity – United States and Canada UL/CSA Certificate of Conformity – United States and Canada
CAD drawings
TLM8 - 3D model TLM8 - 3D model
CASTLG - 3D model CASTLG - 3D model
CASTLG8PG9 - 3D model CASTLG8PG9 - 3D model
CASTLG8GUA - 3D model CASTLG8GUA - 3D model
CASTLGTAST - 3D model CASTLGTAST - 3D model
CASTLGTAST8PG9 - 3D model CASTLGTAST8PG9 - 3D model
CASTLGTAST8GUA - 3D model CASTLGTAST8GUA - 3D model
CASTLM8I - 3D model CASTLM8I - 3D model
CASTLM8I3A - 3D model CASTLM8I3A - 3D model
Associated item codes
CASTLG, CASTLG8GUA, CASTLG8PG9, CASTLGTAST, CASTLGTAST8GUA, CASTLGTAST8PG9, CASTLM8I, CASTLM8I3A, CASTLM8IIEX, CASTLM8IX, JOLLYTLM8, OEMTLM8
Product release notes

1.08.11 - 06/02/2024

Fixed

  • firmware update procedure, executed with Instrument Manager, abruptly interrupted durint step 3 of 4

See all
