重量变送器
LAUMAS重量变送器配备所有最常用的现场总线，可与市面上所有PLC进行通信。提供集成了连接称重传感器的诊断功能的单通道和多通道重量变送器。它们尺寸灵活，提供节省空间且经济高效的紧凑解决方案。
浏览文章或使用筛选功能选择最合适的产品。
找到57的产品

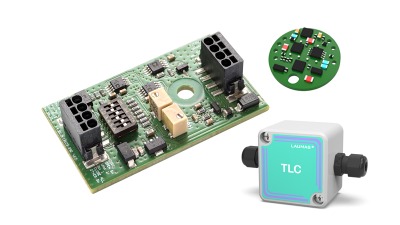

ANALOG WEIGHT TRANSMITTER
Current or voltage analog output.
1 load cell dedicated input.
Compatibile with analog/digital boards normally installed on PLC.
Calibration with sample weights or load cell simulator.
Ideal for use with tension/compression load cells.
Connections to:
1 load cell dedicated input.
Compatibile with analog/digital boards normally installed on PLC.
Calibration with sample weights or load cell simulator.
Ideal for use with tension/compression load cells.
Connections to:
- PLC via analog output
- up to 4 load cells in parallel by junction box
DIGITAL-ANALOG WEIGHT TRANSMITTER (RS485)
4 independent reading channels for load cells (individual load cell monitoring, total weight displaying, digital equalization).
- 16-bit Analog output: 0/4-20 mA; 0-5/10 V; ±5/10 V
- RS485 port (Modbus RTU/Laumas ASCII protocol)
- 2 logic inputs, 3 relay outputs
- OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
- Mounting on Omega/DIN rail for front/back panel
DIGITAL WEIGHT TRANSMITTER (RS485)
4 independent reading channels for load cells (individual load cell monitoring, total weight displaying, digital equalization).
- RS485 port (Modbus RTU/Laumas ASCII protocol)
- 2 logic inputs, 3 relay outputs
- OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
- Mounting on Omega/DIN rail for front/back panel
DIGITAL WEIGHT TRANSMITTER (RS485 - CANopen)
4 independent reading channels for load cells (individual load cell monitoring, total weight displaying, digital equalization).
- CANopen port
- RS485 port (Modbus RTU/Laumas ASCII protocol)
- 2 logic inputs, 3 relay outputs
- OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
- Mounting on Omega/DIN rail for front/back panel
DIGITAL WEIGHT TRANSMITTER (RS485 - DeviceNet)
4 independent reading channels for load cells (individual load cell monitoring, total weight displaying, digital equalization).
- DeviceNet port
- RS485 port (Modbus RTU/Laumas ASCII protocol)
- 2 logic inputs, 3 relay outputs
- OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
- Mounting on Omega/DIN rail for front/back panel
DIGITAL WEIGHT TRANSMITTER (RS485 - CC-Link)
4 independent reading channels for load cells (individual load cell monitoring, total weight displaying, digital equalization).
- CC-Link port
- RS485 port (Modbus RTU/Laumas ASCII protocol)
- 2 logic inputs, 3 relay outputs
- OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
- Mounting on Omega/DIN rail for front/back panel
DIGITAL WEIGHT TRANSMITTER (RS485 - PROFIBUS)
4 independent reading channels for load cells (individual load cell monitoring, total weight displaying, digital equalization).
- PROFIBUS DP port
- RS485 port (Modbus RTU/Laumas ASCII protocol)
- 2 logic inputs, 3 relay outputs
- OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
- Mounting on Omega/DIN rail for back panel
DIGITAL WEIGHT TRANSMITTER (RS485 - PROFINET IO)
4 independent reading channels for load cells (individual load cell monitoring, total weight displaying, digital equalization).
- Two PROFINET IO ports
- RS485 port (Modbus RTU/Laumas ASCII protocol)
- 2 logic inputs, 3 relay outputs
- OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
- Mounting on Omega/DIN rail for front/back panel
DIGITAL WEIGHT TRANSMITTER (RS485 - Ethernet/IP)
4 independent reading channels for load cells (individual load cell monitoring, total weight displaying, digital equalization).
- Two Ethernet /IP ports
- RS485 port (Modbus RTU/Laumas ASCII protocol)
- 2 logic inputs, 3 relay outputs
- OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
- Mounting on Omega/DIN rail for front/back panel
DIGITAL WEIGHT TRANSMITTER (RS485 - Modbus/TCP)
4 independent reading channels for load cells (individual load cell monitoring, total weight displaying, digital equalization).
- Modbus/TCP port
- RS485 port (Modbus RTU/Laumas ASCII protocol)
- 2 logic inputs, 3 relay outputs
- OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
- Back panel mounting on Omega/DIN rail
- Mounting on Omega/DIN rail for front/back panel
DIGITAL WEIGHT TRANSMITTER (RS485 - Ethernet TCP/IP)
4 independent reading channels for load cells (individual load cell monitoring, total weight displaying, digital equalization).
- Ethernet TCP/IP port for remote management (connectable to your PC, smartphone, tablet, etc. via web)
- RS485 port (Modbus RTU/Laumas ASCII protocol)
- 2 logic inputs, 3 relay outputs
- OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
- Mounting on Omega/DIN rail for front/back panel
DIGITAL WEIGHT TRANSMITTER (RS485 - EtherCAT)
4 independent reading channels for load cells (individual load cell monitoring, total weight displaying, digital equalization).
- Two EtherCAT ports
- RS485 port (Modbus RTU/Laumas ASCII protocol)
- 2 logic inputs, 3 relay outputs
- OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
- Mounting on Omega/DIN rail for front/back panel
DIGITAL WEIGHT TRANSMITTER (RS485 – POWERLINK)
4 independent reading channels for load cells (individual load cell monitoring, total weight displaying, digital equalization).
- Two POWERLINK ports
- RS485 port (Modbus RTU/Laumas ASCII protocol)
- 2 logic inputs, 3 relay outputs
- OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
- Mounting on Omega/DIN rail for front/back panel
DIGITAL WEIGHT TRANSMITTER (RS485 - SERCOS III)
4 independent reading channels for load cells (individual load cell monitoring, total weight displaying, digital equalization).
- Two SERCOS III ports
- RS485 port (Modbus RTU/Laumas ASCII protocol)
- 2 logic inputs, 3 relay outputs
- OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
- Mounting on Omega/DIN rail for front/back panel
UNIVERSAL LOAD CELLS DIGITIZER
IP67 junction box made of AISI 304 stainless steel or PA66 nylon reinforced with glass fiber.
3 M12 IP67 connectors.
Dimensions: 90x40x107 mm including connectors.
6 LEDs for communication interface indication.
- Optional fieldbuses: PROFINET IO, Ethernet/IP, Ethernet TCP/IP, Modbus TCP, PROFIBUS DP, EtherCAT, POWERLINK, CANopen, CC-Link, CC-Link IE Field Basic, SERCOS III, IO-LINK.
- Micro USB port
- 16-bit analog output: 0/4-20 mA; 0-5/10 V (optional)
- RS485 port (optional)
- Direct connection between RS485 and RS232 without converter
- 2 logic inputs, 3 relay outputs
- Single loading batchings, max 99 formulas
- Mounting: wired or integral to the load cell body via standard ¼ GAS fitting
- Suitable for wall mounting
The weight calculation rate reaches up to 500 values per second, and the data update rate on the fieldbus can also reach a maximum speed of 500 updates per second when using PROFINET, EtherNet/IP, and EtherCAT buses.
HYGIENIC UNIVERSAL DIGITIZER FOR LOAD CELLS
IP67 junction box made of AISI 304 stainless steel, certified 3-A Sanitary Standards.
3 M12 hygienic connectors with solder terminals.
Dimensions: 90x40x107 mm including connectors.
6 LEDs to indicate the communication interface.
- RPSCQC hygienic device authorized by 3-A SSI
- Optional fieldbuses: PROFINET IO, Ethernet/IP, Ethernet TCP/IP, Modbus TCP, PROFIBUS DP, EtherCAT, POWERLINK, CANopen, CC-Link, CC-Link IE Field Basic, SERCOS III, IO-LINK.
- Micro USB port
- 16-bit analog output: 0/4-20 mA; 0-5/10 V (optional)
- RS485 port (optional)
- Direct connection between RS485 and RS232 without converter
- 2 logic inputs, 3 relay outputs
- Single loading batchings, max 99 formulas
- Mounting: wired or integral to the load cell body via standard ¼ GAS fitting
The weight calculation rate reaches up to 500 values per second, and the data update rate on the fieldbus can also reach a maximum speed of 500 updates per second when using PROFINET, EtherNet/IP, and EtherCAT buses.
WiFi DIGITAL WEIGHT TRANSMITTER (RS232 - RS485)
- Wifi module for wireless connection via integrated web server (for remote management to PC, smartphone, tablet, etc.) or via Modbus RTU/Laumas ASCII protocol.
- RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
- Connectable to others TLKWF devices and W series Laumas instruments with OPZW1RADIO optional
- 2 digital inputs, 4 relay digital outputs
- 1 load cell input
- Wall mounting
DIGITAL WEIGHT TRANSMITTER (RS232 - RS485)
- RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
- 2 digital inputs, 4 relay digital outputs
- 1 load cell input
- Wall mounting
WiFi/SERIAL TRANSCEIVER (RS232 – RS485)
WiFi communication interface device between two serial devices.
- Wifi module for wireless connection via Modbus RTU, Laumas ASCII protocol
- RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
- Connectable to others MODWF devices devices and W series Laumas instruments with OPZW1RADIO optional
- Wall mounting
DIGITAL-ANALOG WEIGHT TRANSMITTER (RS485)
- 16-bit Analog output: 0/4-20 mA; 0-5/10 V; ±5/10 V
- RS485 port (Modbus RTU/Laumas ASCII protocol)
- 2 logic inputs, 3 relay outputs
- OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
- OIML R61 - WELMEC Guide 8.8:2011 (M.I.D.)
- Back panel mounting on Omega/DIN rail
DIGITAL WEIGHT TRANSMITTER (RS485)
- RS485 port (Modbus RTU/Laumas ASCII protocol)
- 2 logic inputs, 3 relay outputs
- OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
- OIML R61 - WELMEC Guide 8.8:2011 (M.I.D.)
- Back panel mounting on Omega/DIN rail
DIGITAL WEIGHT TRANSMITTER (RS485 - CANopen)
- CANopen port
- RS485 port (Modbus RTU/Laumas ASCII protocol)
- 2 logic inputs, 3 relay outputs
- OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
- OIML R61 - WELMEC Guide 8.8:2011 (M.I.D.)
- Back panel mounting on Omega/DIN rail
DIGITAL WEIGHT TRANSMITTER (RS485 - DeviceNet)
- DeviceNet port
- RS485 port (Modbus RTU/Laumas ASCII protocol)
- 2 logic inputs, 3 relay outputs
- OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
- OIML R61 - WELMEC Guide 8.8:2011 (M.I.D.)
- Back panel mounting on Omega/DIN rail
DIGITAL WEIGHT TRANSMITTER (RS485 - CC-Link)
- CC-Link port
- RS485 port (Modbus RTU/Laumas ASCII protocol)
- 2 logic inputs, 3 relay outputs
- OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
- OIML R61 - WELMEC Guide 8.8:2011 (M.I.D.)
- Back panel mounting on Omega/DIN rail
DIGITAL WEIGHT TRANSMITTER (RS485 - PROFIBUS)
- PROFIBUS DP port
- RS485 port (Modbus RTU/Laumas ASCII protocol)
- 2 logic inputs, 3 relay outputs
- OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
- OIML R61 - WELMEC Guide 8.8:2011 (M.I.D.)
- Back panel mounting on Omega/DIN rail
DIGITAL WEIGHT TRANSMITTER (RS485 - PROFINET IO)
- Two PROFINET IO ports
- RS485 port (Modbus RTU/Laumas ASCII protocol)
- 2 logic inputs, 3 relay outputs
- OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
- OIML R61 - WELMEC Guide 8.8:2011 (M.I.D.)
- Back panel mounting on Omega/DIN rail
DIGITAL WEIGHT TRANSMITTER (RS485 - Ethernet/IP)
- 2 Ethernet /IP ports
- RS485 port (Modbus RTU/Laumas ASCII protocol)
- 2 logic inputs, 3 relay outputs
- OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
- OIML R61 - WELMEC Guide 8.8:2011 (M.I.D.)
- Back panel mounting on Omega/DIN rail
DIGITAL WEIGHT TRANSMITTER (RS485 - Modbus/TCP)
- Modbus/TCP port
- RS485 port (Modbus RTU/Laumas ASCII protocol)
- 2 logic inputs, 3 relay outputs
- OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
- OIML R61 - WELMEC Guide 8.8:2011 (M.I.D.)
- Back panel mounting on Omega/DIN rail
DIGITAL WEIGHT TRANSMITTER (RS485 - Ethernet TCP/IP)
- Ethernet TCP/IP port for remote management (connectable to your PC, smartphone, tablet, etc. via web)
- RS485 port (Modbus RTU/Laumas ASCII protocol)
- 2 logic inputs, 3 relay outputs
- OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
- OIML R61 - WELMEC Guide 8.8:2011 (M.I.D.)
- Back panel mounting on Omega/DIN rail
DIGITAL WEIGHT TRANSMITTER (RS485 - EtherCAT)
- Two EtherCAT ports
- RS485 port (Modbus RTU/Laumas ASCII protocol)
- 2 logic inputs, 3 relay outputs
- OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
- OIML R61 - WELMEC Guide 8.8:2011 (M.I.D.)
- Back panel mounting on Omega/DIN rail
DIGITAL WEIGHT TRANSMITTER (RS485 – POWERLINK)
- Two POWERLINK ports
- RS485 port (Modbus RTU/Laumas ASCII protocol)
- 2 logic inputs, 3 relay outputs
- OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
- OIML R61 - WELMEC Guide 8.8:2011 (M.I.D.)
- Back panel mounting on Omega/DIN rail
DIGITAL WEIGHT TRANSMITTER (RS485 - SERCOS III)
- Two SERCOS III ports
- RS485 port (Modbus RTU/Laumas ASCII protocol)
- 2 logic inputs, 3 relay outputs
- OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
- OIML R61 - WELMEC Guide 8.8:2011 (M.I.D.)
- Back panel mounting on Omega/DIN rail
INTELLIGENT JUNCTION BOX - 8 CHANNELS FOR LOAD CELLS
The CLM8 series offers the benefits and performance of an advanced digital weighing system even using analog load cells. 8 independent reading channels for load cells. Digital equalization. Automatic diagnostics.
Available versions:
- Ethernet TCP/IP port for remote management (connectable to your PC, smartphone, tablet, etc. via web)
- RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
- OIML R76:2006 approved, class III, 3x5000 divis. 0.4μV/VSI
Available versions:
- IP67 stainless steel box: 200x148x45 mm; 8+2 cable glands - plugs.
- IP67 polycarbonate box: 170x140x95 mm; 4/8+2 cable glands – plugs, 4+2 PVC end fittings.
- Omega/DIN rail mounting version: 125x92x52 mm.
- Board only: 151x72x30 mm.
DIGITAL-ANALOG WEIGHT TRANSMITTER (RS485) 8 CHANNELS FOR LOAD CELLS
The TLM8 offers the benefits and performance of an advanced digital weighing system even using analog load cells. 8 independent reading channels for load cells. Digital equalization. Automatic diagnostics.
- 16-bit Analog output: 0/4-20 mA; 0-5/10 V
- RS485 port (Modbus RTU/Laumas ASCII protocol)
- 3 logic inputs, 5 relay outputs
- OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
- Mounting on Omega/DIN rail for back panel or junction box
- Hygienic version RPSCQC authorized by 3-A SSI
DIGITAL WEIGHT TRANSMITTER (RS485, CANopen) 8 CHANNELS FOR LOAD CELLS
The TLM8 offers the benefits and performance of an advanced digital weighing system even using analog load cells. 8 independent reading channels for load cells. Digital equalization. Automatic diagnostics.
- Slave CANopen port, max 99 instruments
- RS485 port (Modbus RTU/Laumas ASCII protocol)
- 3 logic inputs, 5 relay outputs
- OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
- Mounting on Omega/DIN rail for back panel or junction box
- Hygienic version RPSCQC authorized by 3-A SSI
ANALOG WEIGHT TRANSMITTER (RS485, DeviceNet) 8 CHANNELS FOR LOAD CELLS
The TLM8 offers the benefits and performance of an advanced digital weighing system even using analog load cells. 8 independent reading channels for load cells. Digital equalization. Automatic diagnostics.
- Slave DeviceNet port, max 64 instruments
- RS485 port (Modbus RTU/Laumas ASCII protocol)
- 3 logic inputs, 5 relay outputs
- OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
- Mounting on Omega/DIN rail for back panel or junction box
- Hygienic version RPSCQC authorized by 3-A SSI
DIGITAL WEIGHT TRANSMITTER (RS485, CC-Link) 8 CHANNELS FOR LOAD CELLS
The TLM8 offers the benefits and performance of an advanced digital weighing system even using analog load cells. 8 independent reading channels for load cells. Digital equalization. Automatic diagnostics.
- Slave CC-Link port, max 64 instruments
- RS485 port (Modbus RTU/Laumas ASCII protocol)
- 3 logic inputs, 5 relay outputs
- OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
- Mounting on Omega/DIN rail for back panel or junction box
- Hygienic version RPSCQC authorized by 3-A SSI
DIGITAL WEIGHT TRANSMITTER (RS485, PROFIBUS) 8 CHANNELS FOR LOAD CELLS
The TLM8 offers the benefits and performance of an advanced digital weighing system even using analog load cells. 8 independent reading channels for load cells. Digital equalization. Automatic diagnostics.
- Slave PROFIBUS DP port (max 32 instruments without line repeaters; max 126 instruments with line repeaters)
- RS485 port (Modbus RTU/Laumas ASCII protocol)
- 3 logic inputs, 5 relay outputs
- OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
- Mounting on Omega/DIN rail for back panel or junction box
- Hygienic version RPSCQC authorized by 3-A SSI
DIGITAL WEIGHT TRANSMITTER (RS485, PROFINET IO) 8 CHANNELS FOR LOAD CELLS
The TLM8 offers the benefits and performance of an advanced digital weighing system even using analog load cells. 8 independent reading channels for load cells. Digital equalization. Automatic diagnostics.
- Two PROFINET IO ports
- RS485 port (Modbus RTU/Laumas ASCII protocol)
- 3 logic inputs, 5 relay outputs
- OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
- Mounting on Omega/DIN rail for back panel or junction box
- Hygienic version RPSCQC authorized by 3-A SSI
DIGITAL WEIGHT TRANSMITTER (RS485, Ethernet/IP) 8 CHANNELS FOR LOAD CELLS
The TLM8 offers the benefits and performance of an advanced digital weighing system even using analog load cells. 8 independent reading channels for load cells. Digital equalization. Automatic diagnostics.
- Slave Ethernet /IP port
- RS485 port (Modbus RTU/Laumas ASCII protocol)
- 3 logic inputs, 5 relay outputs
- OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
- Mounting on Omega/DIN rail for back panel or junction box
- Hygienic version RPSCQC authorized by 3-A SSI
DIGITAL WEIGHT TRANSMITTER (RS485, Modbus/TCP) 8 CHANNELS FOR LOAD CELLS
The TLM8 offers the benefits and performance of an advanced digital weighing system even using analog load cells. 8 independent reading channels for load cells. Digital equalization. Automatic diagnostics.
- Slave Modbus/TCP port
- RS485 port (Modbus RTU/Laumas ASCII protocol)
- 3 logic inputs, 5 relay outputs
- OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
- Mounting on Omega/DIN rail for back panel or junction box
- Hygienic version RPSCQC authorized by 3-A SSI
DIGITAL WEIGHT TRANSMITTER (RS485, EtherCAT) 8 CHANNELS FOR LOAD CELLS
The TLM8 offers the benefits and performance of an advanced digital weighing system even using analog load cells. 8 independent reading channels for load cells. Digital equalization. Automatic diagnostics.
- Two EtherCAT ports
- RS485 port (Modbus RTU/Laumas ASCII protocol)
- 3 logic inputs, 5 relay outputs
- OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
- Mounting on Omega/DIN rail for back panel or junction box
- Hygienic version RPSCQC authorized by 3-A SSI
DIGITAL WEIGHT TRANSMITTER (RS485, Ethernet TCP/IP) 8 CHANNELS FOR LOAD CELLS
The TLM8 offers the benefits and performance of an advanced digital weighing system even using analog load cells. 8 independent reading channels for load cells. Digital equalization. Automatic diagnostics.
- Ethernet TCP/IP port for remote management (connectable to your PC, smartphone, tablet, etc. via web)
- RS485 port (Modbus RTU/Laumas ASCII protocol)
- 3 logic inputs, 5 relay outputs
- OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
- Mounting on Omega/DIN rail for back panel or junction box
- Hygienic version RPSCQC authorized by 3-A SSI
DIGITAL WEIGHT TRANSMITTER (RS485, POWERLINK) 8 CHANNELS FOR LOAD CELLS
The TLM8 offers the benefits and performance of an advanced digital weighing system even using analog load cells. 8 independent reading channels for load cells. Digital equalization. Automatic diagnostics.
- Two POWERLINK ports
- RS485 port (Modbus RTU/Laumas ASCII protocol)
- 3 logic inputs, 5 relay outputs
- OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
- Mounting on Omega/DIN rail for back panel or junction box
- Hygienic version RPSCQC authorized by 3-A SSI
DIGITAL WEIGHT TRANSMITTER (RS485, SERCOS III) 8 CHANNELS FOR LOAD CELLS
The TLM8 offers the benefits and performance of an advanced digital weighing system even using analog load cells. 8 independent reading channels for load cells. Digital equalization. Automatic diagnostics.
- Two SERCOS III ports
- RS485 port (Modbus RTU/Laumas ASCII protocol)
- 3 logic inputs, 5 relay outputs
- OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
- Mounting on Omega/DIN rail for back panel or junction box
- Hygienic version RPSCQC authorized by 3-A SSI
KASTEN AUS EDELSTAHL FÜR WÄGETRANSMITTER TLM8
Für mehrkanaligen Wägetransmitter TLM8.
- Schutzart IP68 (auf Anfrage IP69K)
- Einbau an: Schalttafelfront, Wand, Tisch
- Version ATEX II 3GD
- TEST-Taste für den direkten Zugriff auf Diagnosefunktionen
HYGIENIC STAINLESS STEEL BOX FOR TLM8 TRANSMITTER
For multichannel weight transmitter series TLM8.
- Hygienic device RPSCQC authorized by 3-A SSI
- IP69K protection rating
- Panel mounting
- TEST key for direct access to the diagnostic functions
ANALOG WEIGHT TRANSMITTER (RS485)
- 16-bit Analog output: 0/4-20 mA; 0-5/10 V; ±5/10 V
- RS485 port (Modbus RTU)
- Simple zero setting and full scale through digital rotary control (Encoder)
- Mounting on Omega/DIN rail for back panel or junction box
- Box versions: IP67, IP67 ATEX II 3GD
DIGITAL WEIGHT TRANSMITTER (RS485)
- RS485 port (Modbus RTU/Laumas ASCII protocol)
- 2 logic inputs, 2 optorelays logic outputs
- Mounting on Omega/DIN rail for back panel or junction box
- Box versions: IP67, IP67 ATEX II 3GD
WEB SERVER MASTER FOR W AND TLB SERIES (max 8)
- Ideal for supervision, management and remote control of the W series weight indicators and TLB series weight transmitters (max 8 instruments)
- RS485 port (Modbus RTU)
- Ethernet TCP/IP port for remote management via internet from PC, smartphone or tablet, etc.
- Back panel mounting on Omega/DIN rail
The WEBLAU device is a useful support for all installers/dealers of Laumas weighing instruments as it makes easier the remote maintenance, allowing to control wherever, the status of the instruments connected to RS485 including the possible anomalies.
DIGITAL-ANALOG WEIGHT TRANSMITTER (RS485)
- 16-bit Analog output: 0/4-20 mA; 0-5/10 V; ±5/10 V
- RS485 port (Modbus RTU/Laumas ASCII protocol)
- 2 logic inputs, 2 optorelays logic outputs
- Mounting on Omega/DIN rail for back panel or junction box
- Box versions: IP67, IP67 ATEX II 3GD
DIGITAL-ANALOG LOAD LIMITING DEVICE/WEIGHT TRANSMITTER
- 16-bit Analog output: 0/4-20 mA; 0-5/10 V; ±5/10 V (optional)
- RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
- 2 logic inputs, 4 relay outputs
- Mounting on Omega/DIN rail for back panel or junction box
- Box versions: IP67, IP67 ATEX II 3GD
DIGITAL WEIGHT TRANSMITTER (RS232 - RS485)
- Synchronous weight transmission for PLCs without serial port
- 16-bit Analog output: 0/4-20 mA; 0-5/10 V; ±5/10 V (optional)
- RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
- 2 logic inputs, 4 relay outputs
- Mounting on Omega/DIN rail for back panel or junction box
- Box versions: IP67, IP67 ATEX II 3GD
IP67 CASE WITH TRANSPARENT COVER
For weight transmitter series TLE
- ATEX II 3GD approved
- Dimensions 170x140x95 mm; centre distance 122x152 mm
- 6 M16x1.5 cable glands
IP67 CASE WITH EXTERNAL KEYPAD
For weight transmitters: TLS, TLS485, TLU, TLL, THFPROFI
- ATEX II 3GD approved
- Dimensions 170x140x95 mm; centre distance 122x152 mm
- 6 M16x1.5 cable glands
DIGITAL LOAD LIMITING DEVICE
- Suitable for lifting systems
- Single/multi-weighing system: load limitation (single and sum) for systems with up to 4 weighing points, by connecting multiple units.
- 3 relay outputs
- 1 load cell dedicated input
- Load cells connections continuous check
- Mounting on Omega/DIN rail for back panel or junction box
- RS232 and RS485 ports
- 2 digital inputs
- Power Supply 24-48 Vdc/Vac
DIGITAL LOAD LIMITING DEVICE
- Suitable for lifting systems
- Dual channel input system for single or double bridge load cells, in accordance with category 2 as per EN 13849-1:2008, PL d (corresponding to SIL 2, EN62061 standard).
- 4 relay outputs
- 2 independent load cell inputs
- Load cells connections continuous check
- Mounting on Omega/DIN rail for back panel or junction box
- RS232 and RS485 ports
- 2 digital inputs
- Power Supply 24-48 Vdc/Vac
