New TLC analog weight transmitter

New TLC analog weight transmitter

We present the new TLC analog weight transmitter:

▷ Small and affordable

The TLC, with its dimensions of 45 x 26 x 11 mm in the board-only version, is the most compact and cost-effective of our analog weight transmitters.

If space is limited and/or you need to reduce costs (e.g., for mass production or smart weighing), it is the ideal solution for creating applications with multiple independent weighing systems connected to a single PLC via analog output, but which do not require special technical performance.

▷ Versatile

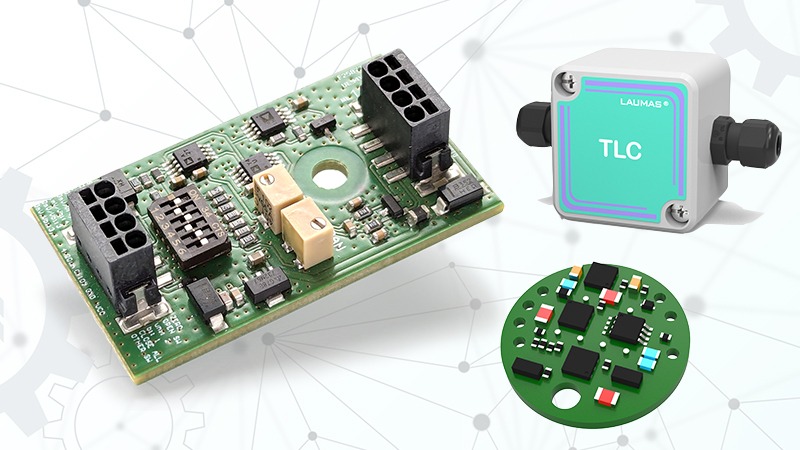

The TLC adapts to any type of application and is available on request in 2 additional versions:

• IP67 ABS enclosure version for protection against water and dust;
• circular board version, even smaller and more affordable, with a diameter of only 20mm.

▷ Complete

In its simplicity, the TLC is equipped with all the essential features:

• analog output in current (4-20 mA) or voltage (0-10 VDC);
• connection of up to 4 load cells in parallel;
• compatible with the analog/digital boards of any PLC;
• rated output selection with mini switches, in a range between 1 mV/V and 3 mV/V;
• 12-turn potentiometer for zero and full-scale adjustment.

It is also the only one of our transmitter that features spring terminal blocks for faster and more secure wiring in case of transport after calibration and/or exposure to vibrations.
